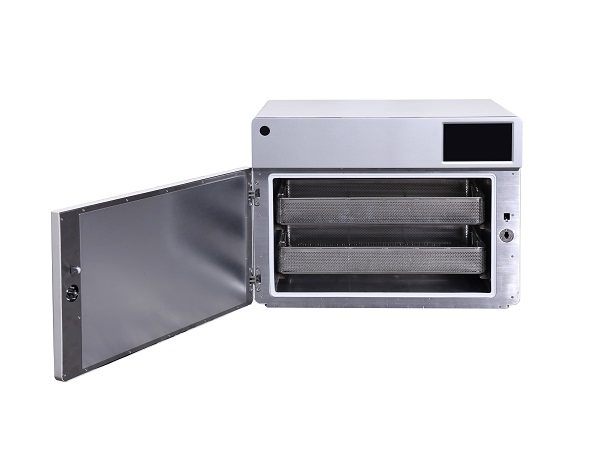

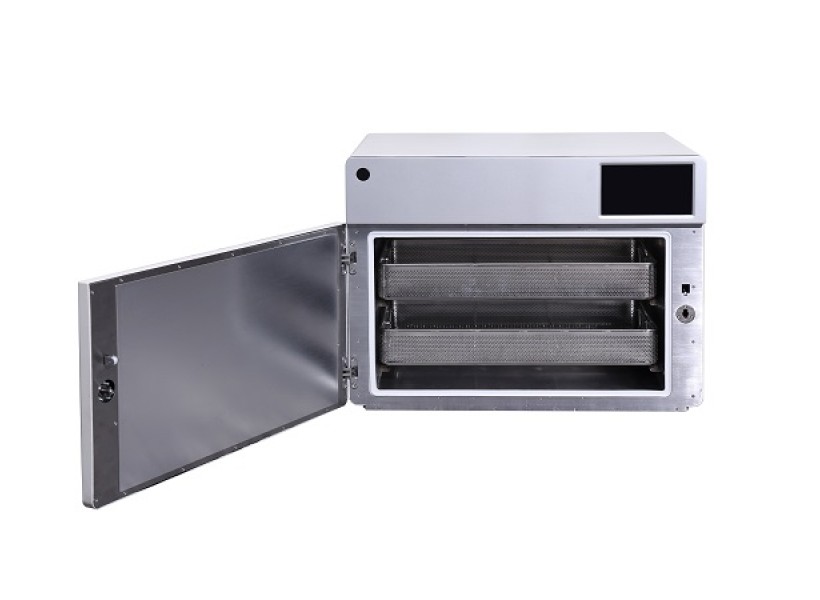

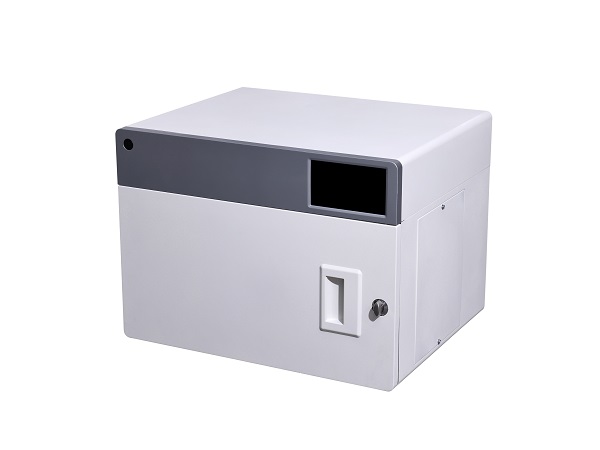

Plasma Cabinet (RPS-50L) Reactive Plasma Sterilizer

Low-Temperature, Eco-Friendly Steriloization Solution for Veterinary & Medical Instruments

The Plasma Cabinet is a low-temperature reactive plasma sterilization system designed for safe, efficient, and enviromentally friendly sterilization of heat-and moisture-sensitive medical and veterinary instruments.

Operating at tempeartures below 45℃, the system ultilizes dielectric barrier discharge technology to generate highly reactive sterilizeing gases that effectively inactivate microorganisms by destroying their DNA adn RNA sructutres.

With zero harmful emissions, no external ventilation requirements, and minimal operating cose per cycle, the Plasma Cabinet provides an advanced and cost-effecitve alternative to traditional sterilization technologies.

Clinical applications

• Rigid and flexible endoscopes
• Laparoscopic instruments
• Electrosurgical handpieces and accessories
• Surgical froceps, scissors and clamps
• Optical components and delivcate instruments
• Plastic, Silicone, Rubber and Polymer-based medical devices

Ideal for: Veterinary Hospitals, animal clinics, medical clinics, laboratories, and research institutions.

Product Featrues Low operating temperature: <45℃ Three selectable working modes Standarad cycle sterilization time: <1.5 hours Zero emissions, environmentally friendly No installation or extenral exhaust system required Only electricity and chemical indicator strip require per cycle Extremely low per-cycle operating cost Integrated vaccum, humidification, air compression, and exhuast decompostiion systems Proven sterilization performance with biological indicatos ≥ ≥106 spores Sterlization verification compliant with ISO 11138-1:2017

Specification

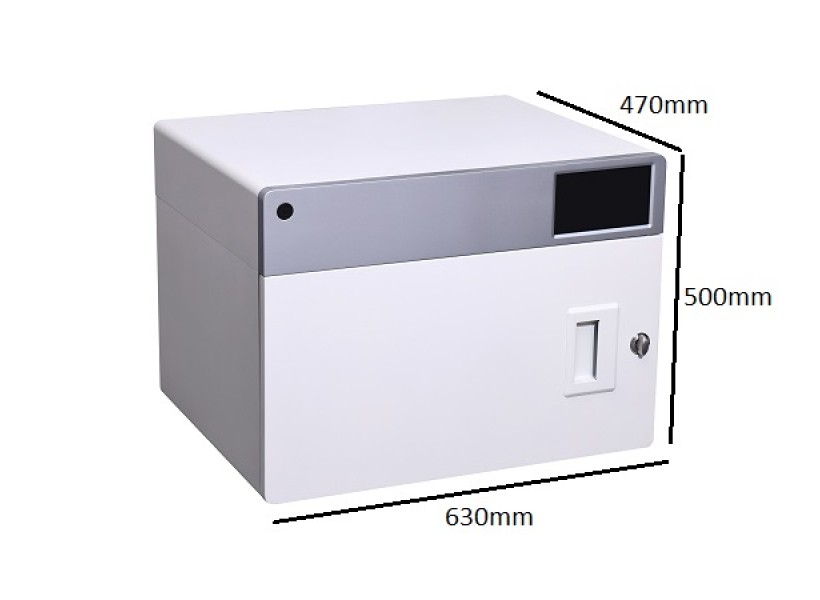

Overall size: (630W x 470H x 500D) mm

Chamber size: (525W x 300H x 320D) mm

Chamber Diagonal LEngth: approx. 680mm

Chamber Volume: 50L

Operating Temparture: <45℃

Sterilization Gas Type: Reactive Plasma (Sterilant Gas)

Operating Pressure: Vacuum

Packaging List included

1 x Plasma Sterilizaer Main Unit

1 x Power Cable

2 x Sterilization Trays

1 x Indicator Strip box(100 pieces)

1 x Catalyst Canister
